A-flat minor 6th chord

The Solution below shows the A-flat minor 6th chord in root position, 1st, 2nd, and 3rd inversions, on the piano, treble clef and bass clef.

The Lesson steps then explain how to construct this 6th chord using the 3rd, 5th and 6th note intervals, then finally how to construct the inverted chord variations.

For a quick summary of this topic, have a look at Sixth chord.

Minor 6th chord (4 notes)
KeyCC#DbDD#EbEE#FbFF#GbGG#[Ab]AA#BbBB#Cb

Solution - 4 parts

1. A-flat minor 6th chord

This step shows the A-flat minor 6th chord in root position on the piano, treble clef and bass clef.

The A-flat minor 6th chord contains 4 notes: Ab, Cb, Eb, F.

The chord spelling / formula relative to the Ab major scale is:  1 b3 5 6.

A-flat minor 6th chord note names
Note no.Note intervalSpelling
/ formula
Note name#Semitones
from root
1root1The 1st note of the A-flat minor 6th chord is Ab0
2Ab-min-3rdb3The 2nd note of the A-flat minor 6th chord is Cb3
3Ab-perf-5th5The 3rd note of the A-flat minor 6th chord is Eb7
4Ab-maj-6th6The 4th note of the A-flat minor 6th chord is F9

A-flat minor 6th chord

Middle C (midi note 60) is shown with an orange line under the 2nd note on the piano diagram.

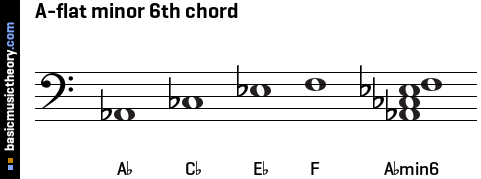

These note names are shown below on the treble clef followed by the bass clef.

A-flat minor 6th chord

A-flat minor 6th chord

The figured bass symbols for this chord in root position are 6/5/3.

The staff diagrams and audio files contain each note individually, ascending from the root, followed by the chord containing all 3 notes.

Audio downloads
bass clef iconBass Clef:MidiMP3treble clef iconTreble Clef:MidiMP3

2. A-flat minor 6th 1st inversion

This step shows the A-flat minor 6th 1st inversion on the piano, treble clef and bass clef.

The A-flat minor 6th 1st inversion contains 4 notes: Cb, Eb, F, Ab.

A-flat minor 6th 1st inversion

These note names are shown below on the treble clef followed by the bass clef.

A-flat minor 6th 1st inversion

A-flat minor 6th 1st inversion

The figured bass symbols for this chord in root position are 6/4/3, so the chord is said to be in six-four-three position.

Audio downloads
bass clef iconBass Clef:MidiMP3treble clef iconTreble Clef:MidiMP3

3. A-flat minor 6th 2nd inversion

This step shows the A-flat minor 6th 2nd inversion on the piano, treble clef and bass clef.

The A-flat minor 6th 2nd inversion contains 4 notes: Eb, F, Ab, Cb.

A-flat minor 6th 2nd inversion

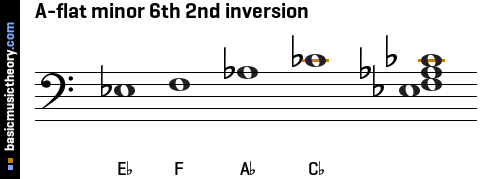

These note names are shown below on the treble clef followed by the bass clef.

A-flat minor 6th 2nd inversion

A-flat minor 6th 2nd inversion

The figured bass symbols for this chord in root position are 6/4/2, so the chord is said to be in six-four-two position.

Audio downloads
bass clef iconBass Clef:MidiMP3treble clef iconTreble Clef:MidiMP3

4. A-flat minor 6th 3rd inversion

This step shows the A-flat minor 6th 3rd inversion on the piano, treble clef and bass clef.

The A-flat minor 6th 3rd inversion contains 4 notes: F, Ab, Cb, Eb.

A-flat minor 6th 3rd inversion

These note names are shown below on the treble clef followed by the bass clef.

A-flat minor 6th 3rd inversion

A-flat minor 6th 3rd inversion

The figured bass symbols for this chord in root position are 7/5/3, so the chord is said to be in seven-five-three position.

Audio downloads
bass clef iconBass Clef:MidiMP3treble clef iconTreble Clef:MidiMP3

Lesson steps

1. Piano key note names

This step shows the white and black note names on a piano keyboard so that the note names are familiar for later steps, and to show that the note names start repeating themselves after 12 notes.

The white keys are named using the alphabetic letters A, B, C, D, E, F, and G, which is a pattern that repeats up the piano keyboard.

Every white or black key could have a flat(b) or sharp(#) accidental name, depending on how that note is used. In a later step, if sharp or flat notes are used, the exact accidental names will be chosen.

Sharp and flat note names

The audio files below play every note shown on the piano above, so middle C (marked with an orange line at the bottom) is the 2nd note heard.

Audio downloads
bass clef iconBass Clef:MidiMP3treble clef iconTreble Clef:MidiMP3

2. A-flat tonic note and one octave of notes

This step shows 1 octave of notes starting from note Ab, to identify the start and end notes of the scale used to build this chord.

The numbered notes are those that might be used when building this chord.

Note 1 is the root note - the starting note of the chord - Ab, and note 13 is the same note name but one octave higher.

A-flat chromatic scale-1 octave of notes

A-flat chromatic scale-1 octave of notes
No.12345678910111213
NoteAbAA# / BbBCC# / DbDD# / EbEFF# / GbGAb
Audio downloads
bass clef iconBass Clef:MidiMP3treble clef iconTreble Clef:MidiMP3

3. A-flat major scale note interval positions

This step describes the Ab major scale , whose note intervals are used to define the chord in a later step.

The major scale uses the  W-W-H-W-W-W-H  note counting rule to identify the scale note positions.

To count up a Whole tone, count up by two physical piano keys, either white or black.

To count up a Half-tone (semitone), count up from the last note up by one physical piano key, either white or black.

The tonic note (shown as *) is the starting point and is always the 1st note in the major scale.

A-flat major scale note positions

Again, the final 8th note is the octave note, having the same name as the tonic note.
A-flat major scale note positions
No.12345678
NoteAbA# / BbCC# / DbD# / EbFGAb
Audio downloads
bass clef iconBass Clef:MidiMP3treble clef iconTreble Clef:MidiMP3

4. A-flat major scale note interval numbers

This step identifies the note interval numbers of each scale note, which are used to calculate the chord note names in a later step.

To identify the note interval numbers for this major scale, just assign each note position from the previous step, with numbers ascending from 1 to 8.

A-flat major scale note interval numbers
No.12345678
NoteAbBbCDbEbFGAb

To understand why the note names of this major scale have these specific sharp and flat names, have a look at the Ab major scale page.

A-flat major scale note interval numbers

Both the note interval numbers and note names from the piano diagram above will be used in later steps to calculate the chord note names.

5. 6th chord qualities

This step defines a sixth chord, names the most common 6th chord qualities and identifies the notes that vary between them.

6th chord definition

Whereas a triad chord contains 3 notes, a 6th chord contains 4 notes that are played together or overlapping.

6th chord qualities

Although others exist, the most common 6th chord qualities, are major, and minor.

Each chord quality name is the name of the entire chord as a whole, not its individual notes (which will be covered later).

Triad chords used for construction

Both major and minor chord qualities are built on the triad chord in the same key plus one added note - the 6th note of the major scale in the previous step.

So the A-flat major 6th chord is based on the Ab major chord, and the A-flat minor 6th chord is based on the Ab minor chord. The added 6th note in both cases is F.

The steps below will detail the construction of the minor 6th chord quality in the key of Ab using note intervals.

6. 6th chord note intervals

This step defines the note intervals for each chord quality, including the intervals for the A-flat minor 6th chord. It also shows how the 6th chord qualities are related to the triad chord qualities they are based on.

Each individual note in a 6th chord can be represented in music theory using a note interval, which is used to express the relationship between the first note of the chord (the root note), and the note in question.

The root note is always the 1st note (note interval 1 in the above diagram) of the major scale diagram above. ie. the tonic of the major scale.

Then there is one note interval to describe the 2nd note, and another to describe the 3rd note of the chord, and finally another interval for the 4th chord note.

In the same way that the entire chord itself has a chord quality, the intervals representing the individual notes within that chord each have their own quality.

These note interval qualities could be diminished, minor, major, perfect and augmented.

Below is a table showing the note interval qualities for the most common 6th chords, together with the interval short names / abbrevations in brackets.

The final column shows the triad chord quality that the 6th chord is based on, so the 2nd and 3rd note quality columns are the same as the triad table for the same key.

sixth chord note interval qualities
6th chord quality2nd note quality3rd note quality4th note qualityBased on triad quality
minorminor (m3)perfect (P5)major (M6)minor
majormajor (M3)perfect (P5)major (M6)major

The numbers in brackets are the note interval number (ie the scale note number) shown in the previous step.

Looking at the table above, the note intervals for the chord quality we are interested in (minor 6th), in the key of Ab are Ab-min-3rd, Ab-perf-5th, and Ab-maj-6th.

The links above explain in detail the meaning of these qualities, the short abbrevations in brackets, and how to calculate the interval note names based on the scale note names from the previous step.

7. A-flat minor 6th chord in root position

This step shows the A-flat minor 6th chord note interval names and note positions on a piano diagram.

Note name adjustments

Each note interval quality (diminished, minor, major, perfect, augmented) expresses a possible adjustment ie. a possible increase or decrease in the note pitch from the major scale notes in step 4.

If an adjustment in the pitch occurs, the note name given in the major scale in step 4 is modified, so that sharp or flat accidentals will be added or removed.

But crucially, for all interval qualities, the starting point from which accidentals need to be added or removed are the major scale note names in step 4.

For this chord, this is explained in detail in Ab-min-3rd, Ab-perf-5th and Ab-maj-6th, but the relevant adjustments for this minor 6th chord quality are shown below:

Ab-3rd: The 3rd note quality of the major scale is major, and the note interval quality needed is minor, so the 3rd note scale note name - C, is adjusted 1 half-note / semitone down to Cb. The chord note spelling reflects this note flattening: b3.

Ab-5th: Since the 5th note quality of the major scale is perfect, and the note interval quality needed is perfect also, no adjustment needs to be made. The 5th note name - Eb is used, and the chord note spelling is 5.

Ab-6th: Since the 6th note quality of the major scale is major, and the note interval quality needed is major also, no adjustment needs to be made. The 6th note name - F is used, and the chord note spelling is 6.

If it is still not clear why the interval qualities are organised / related as they are, please refer to each of the interval links above.

A-flat minor 6th chord note names

The final chord note names and note interval links are shown in the table below.

A-flat minor 6th chord in root position
Note1356
Interval No.AbCbEbF
Interval defrootAb-min-3rdAb-perf-5thAb-maj-6th
Spelling1b356
#Semitones0379

The piano diagram below shows the interval short names, the note positions and the final note names of this triad chord.

A-flat minor 6th chord intervals

In music theory, this 6th chord as it stands is said to be in root position because the root of the chord - note Ab, is the note with the lowest pitch of all the chord notes.

The note order of this chord can also be changed, so that the root is no longer the lowest note, in which case the chord is no longer in root position, and will be called an inverted 6th chord instead.

For 6th chords, there are 3 possible inverted variations as described below.

Figured bass notation

The figured bass notation for a 6th chord in root position is 6/5/3, with the 6 placed above the 5, and the 5, above the 3.

These numbers represent the interval between the lowest note of the chord and the note in question.

So another name for this inversion would be A-flat minor 6th triad in six-five-three position.

For example, the 6 represents note F, from the Ab-6th interval, since the chord root, Ab, is the lowest note of the chord (as it is not inverted). .

In the same way, the figured bass 5 symbol represents note Eb, from the Ab-5th interval, and the 3 symbol represents note Cb, from the Ab-3rd interval

Since figured bass notation works within the context of a key, we don't need to indicate in the figured bass symbols whether eg. the 3rd is a major, minor etc. The key is assumed from the key signature.

Audio downloads
bass clef iconBass Clef:MidiMP3treble clef iconTreble Clef:MidiMP3

8. A-flat minor 6th 1st inversion

This step shows the first inversion of the A-flat minor 6th.

To invert a chord, simply take the first note of the chord to be inverted (the lowest in pitch) and move it up an octave to the end of the chord.

So for a 1st inversion, take the root of the 6th chord in root position from the step above - note Ab, and move it up one octave (12 notes) so it is the last (highest) note in the chord.

The second note of the original 6th chord (in root position) - note Cb is now the note with the lowest pitch.

A-flat minor 6th 1st inversion

Figured bass notation

The figured bass notation for this chord in 1st inversion is 6/4/3, with the 6 placed above the 4, and the 4 placed above the 3 on a staff diagram.

Based on this numbering scheme, another name for this inversion would be A-flat minor 6th triad in six-four-three position.

These numbers represent the interval between the lowest note of the chord (not necessarily the original chord root!), and the note in question.

For example, the 6 represents note Ab, from the Cb-6th interval, since the lowest (bass) note of the chord - now inverted, is Cb.

In the same way, the figured bass 4 symbol represents note F, from the Cb-4th interval, and the 3 symbol represents note Eb, from the Cb-3rd interval

Audio downloads
bass clef iconBass Clef:MidiMP3treble clef iconTreble Clef:MidiMP3

9. A-flat minor 6th 2nd inversion

This step shows the second inversion of the A-flat minor 6th.

For a 2nd inversion, take the first note of the 1st inversion above - Cb, and move it to the end of the chord.

So the second note of the 1st inversion - note Eb is now the note with the lowest pitch for the 2nd inversion.

Or put another way, the third note of the original 6th chord (in root position) is now the note with the lowest pitch.

A-flat minor 6th 2nd inversion

Figured bass notation

The figured bass notation for this chord in 2nd inversion is 6/4/2, with the 6 placed above the 4, and the 4 placed above the 2 on a staff diagram.

Based on this numbering scheme, another name for this inversion would be A-flat minor 6th triad in six-four-two position.

These numbers represent the interval between the lowest note of the chord (not necessarily the original chord root!), and the note in question.

For example, the 6 represents note Cb, from the Eb-6th interval, since the lowest (bass) note of the chord - now inverted, is Eb.

In the same way, the figured bass 4 symbol represents note Ab, from the Eb-4th interval, and the 2 symbol represents note F, from the Eb-2nd interval

Audio downloads
bass clef iconBass Clef:MidiMP3treble clef iconTreble Clef:MidiMP3

10. A-flat minor 6th 3rd inversion

This step shows the third inversion of the A-flat minor 6th.

For a 3rd inversion, take the first note of the 2nd inversion above - Eb, and move it to the end of the chord.

So the second note of the 2nd inversion - note F is now the note with the lowest pitch for the 3rd inversion.

Or put another way, the fourth note of the original 6th chord (in root position) is now the note with the lowest pitch.

A-flat minor 6th 3rd inversion

Figured bass notation

The figured bass notation for this chord in 3rd inversion is 7/5/3, with the 7 placed above the 5, and the 5 placed above the 3 on a staff diagram.

Based on this numbering scheme, another name for this inversion would be A-flat minor 6th triad in seven-five-three position.

These numbers represent the interval between the lowest note of the chord (not necessarily the original chord root!), and the note in question.

For example, the 7 represents note Eb, from the F-7th interval, since the lowest (bass) note of the chord - now inverted, is F.

In the same way, the figured bass 5 symbol represents note Cb, from the F-5th interval, and the 3 symbol represents note Ab, from the F-3rd interval

Audio downloads
bass clef iconBass Clef:MidiMP3treble clef iconTreble Clef:MidiMP3
